Mold description:
|

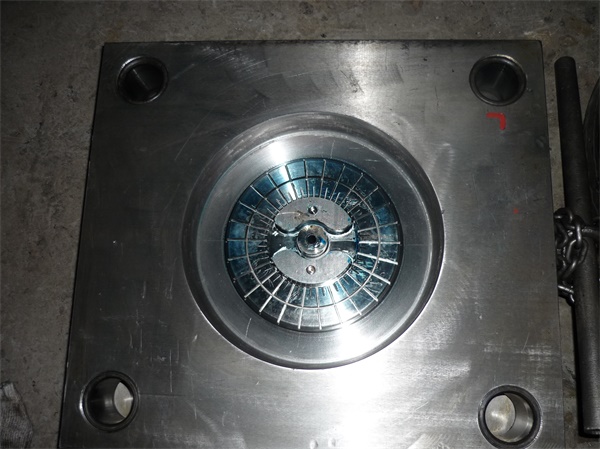

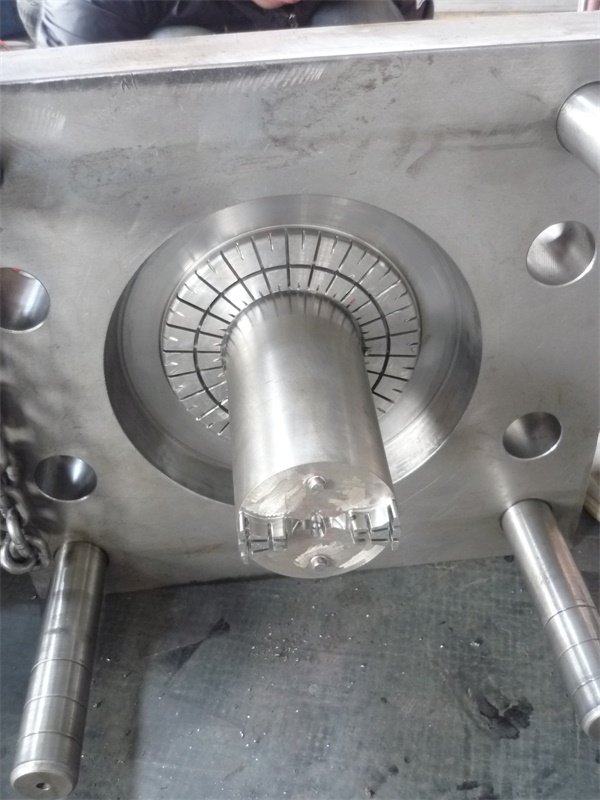

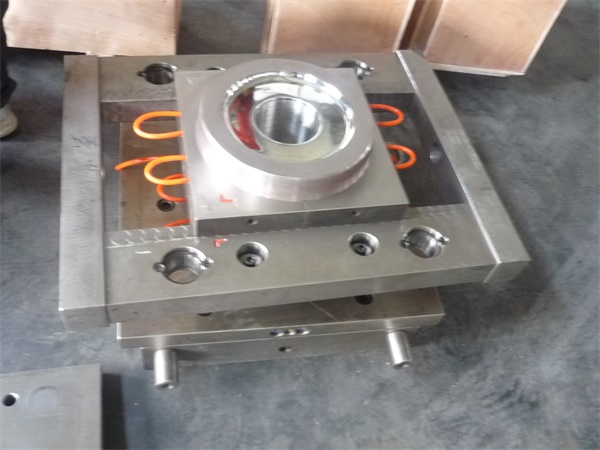

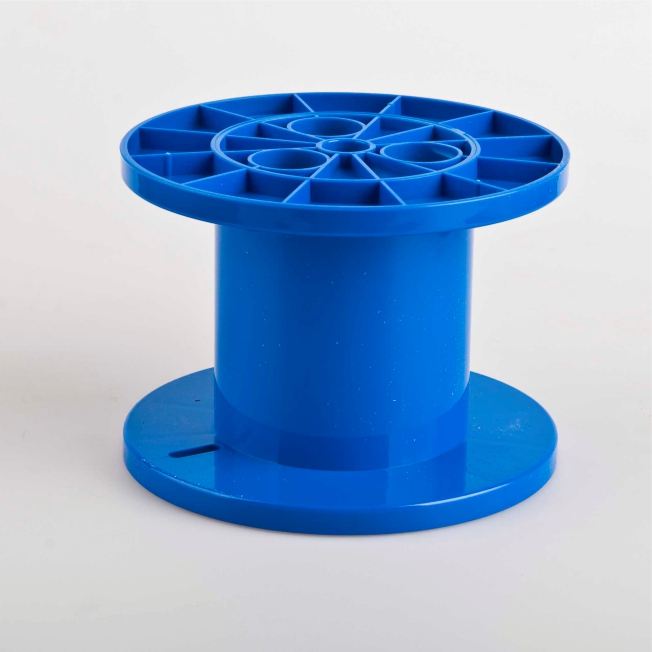

High quality palstic wire spool mould
|
Purchase order
|
Customer offer PO to confirm the order
|
Invoice:
|
We send PI for payment
|
Payment:
|
Within 3days 50%down payment by TT
|
Parts design
|
3days to modify and confirm
|
Mold flow
|
Before mold design moldflow to analysis injection
|
Mold design:
|
5days to make mold design
|
Confirmation:
|
3D mold design confirmation to start machining
|
Order steel:
|
5days steel will arrive us for machining
|
Rough machining
|
Raw steel flying knife processing to machine
|
Heat treatment
|
After rough machining
|
Hardness:
|
48-54HRC
|
Lifters:
|
Nitride with surface hardness 48HRC
|
Fine machine:
|
High speed CNC, three or five axis CNC
|
Fine machining
|
High speed engraving machining
|
Fine machine:
|
Fine EDM, wire cutting
|
Assembly:
|
3days to assembly for test
|
Polish:
|
Manual high quality process
|
Surface finish:
|
Mirror polishing to get good appearance
|
Other:
|
EDM or wire cutting texture
|
Ejection:
|
Hardness HRC55-60, run automatic
|
Suitable for:
|
Injection machine
|
Test:
|
50day after confirmation mould design
|
Balance:
|
50% balance by TT
|
Delivery
|
1-2weeks after balance and samples confirmation
|
Transport
|
By sea from Ningbo Port China
|
