Home > Products > Industrial Mould > Pallet Mould

double face heavy pallet mould

plastic pallet mold, we offer single face and double face pallet mould, high quality mould with competitive price, moere details contact us to know.....

Send Inquiry

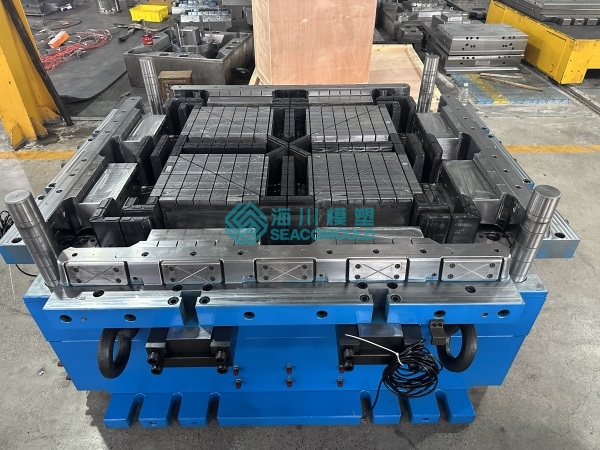

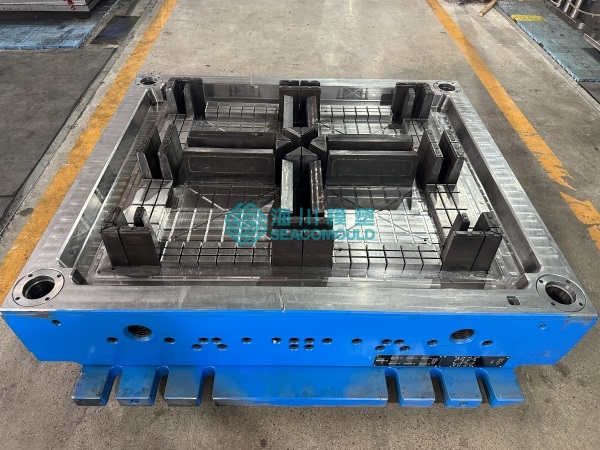

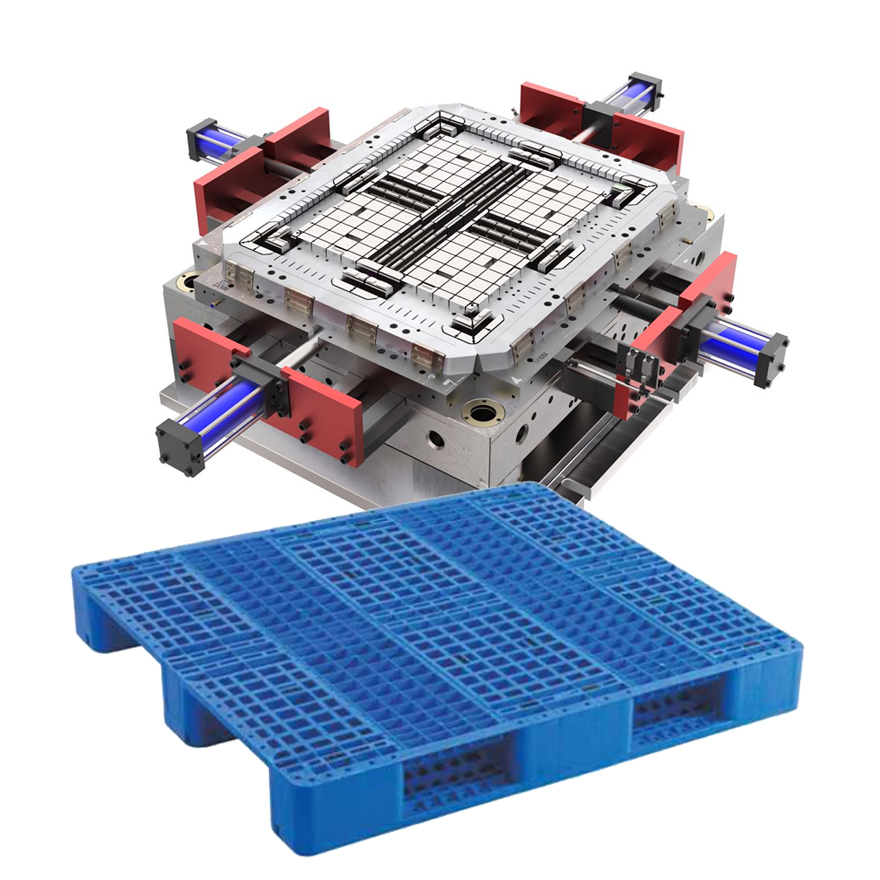

Pallet mould information

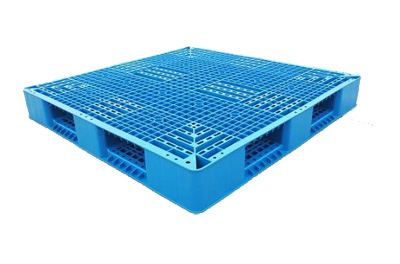

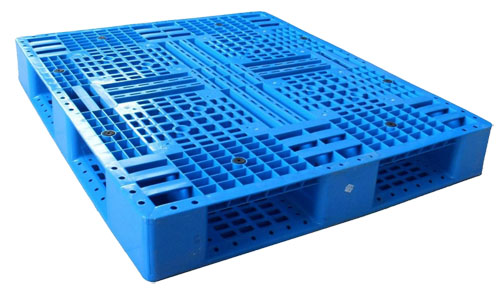

pallet size:1200*1000*150mm
PP and HDPE suitable
20 points hot runner open gate
Ejection mechanical
Slider drived by Oil Cylinder.
mould size: 1600*1600*1200
mould weight 14500kg
Cycle time:80-100 seconds
INjecion machine:2100ton




pallet mouldpallet mould
