Plastic Car Rear View Mirror Mould

Rearview Mirror Product Introduction

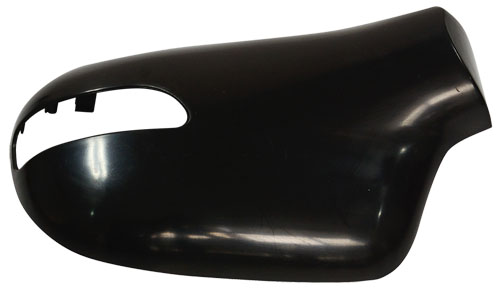

Automotive rearview mirrors are generally composed of mirror rings, pedestals, mirror housings, brackets, rotating shafts, and mirror mounts. The rearview mirror product has strict appearance requirements, high with general surface fine grain treatment, and low with general paint treatment. Depending on the model, the rearview mirrors are split and integrated. The mid-range and high-end models are split-type and the low-end models are integrated.

Introduce rearview mirror products to opening mold

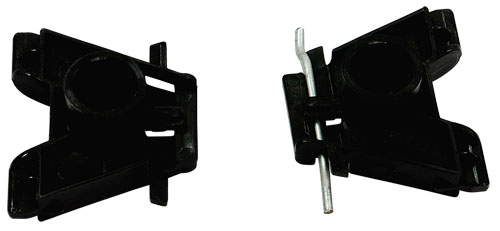

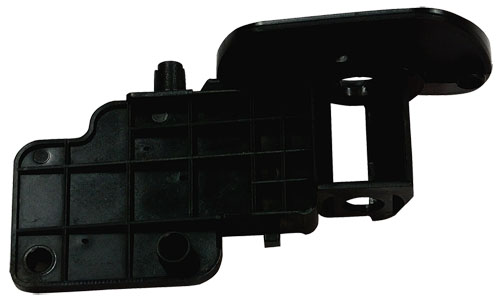

1. Rearview Mirror parts mould

• Product material: ABS/ PP+GF45
• Number of cavities: 1+1
• Adhesive mode: 2 points hot runner turn horn into the glue.

Rearview mirro mould design

The mold adopts the demolding mechanism of the push rod + push block + oblique push block. This is the typical structure of the car mirror housing mold. It is necessary to pay attention to the design of this type of mold. This structure must be manually taken, and manual picking is required. When picking up the pieces, the plastic parts are manually cut out. For such plastic parts, the plastic parts must have a swinging space. This type of plastic parts that are hand-pulled out are also used in automobile mold design, such as automobile steering column and throttle cover.
