Automotive parts mould,auto handle air assistant injection mold

Auto grille mold....

Send Inquiry

OEM customized automotive  mould, China quality auto mold manufacturer, specified supplier. More than 500 automotive mold be exported to more than 20countries per year, 15 years expierence on plastic injection mold making and supply, we also have oversea offices to support our mold making and after sale service.
  • automotive material:  ABS or PP
  • automotive mold analysis:  Moldflow before mold design
  • automotive mold design:  3D format in STP, X_T or IGS, 2D design in dwg, or pdf
  • automotive mold steel:  cavity 718H,P20H, 2738, 1.2312; core718H, 2738, NAK80.
  • automotive mold cavity: 1 cavity or more
  • automotive mold standard parts:  HASCO, DME, PUNCH,JINGHONG.
  • automotive mold hot runner:  YUDO, INCOE, Synventive, DME, MOLD-MASTERS,
  • automotive mold gate:  edge gate or point gate
  • Steel treatment:  Vacuum quenching, or nitride
  • automotive mold size: 1150*550*650mm
  • Injection machine: 1000T
  • Cycle time: 60S
  • Works schedule:  5days design-3days prepare-45days machining-5days assembly, then test.
  • Mold life guarantee:  500000shots or one year.
  • Packing for delivery:  strong wooden case or pallet.
  • Shipment:  by sea after customer approval the final samples.
  • Process following:  weekly process report with pictures or videos
  • Test inspection:  checking list report
  • Payment terms: by TT 50% down payment, 50% balance before shipment
  • Service:  30% spare parts for mold, and 1 year guarantee.

1. Automotive Parts Mold Making Process

Mold description:

High quality automotive mold

Purchase order

Customer offer PO to confirm the order

Invoice:

We send PI for payment

Payment:

Within 3days 50%down payment by TT

Parts design

3days to modify and confirm

Mold flow

Before mold design moldflow to analysis injection

Mold design:

5days to make mold design

Confirmation:

3D mold design confirmation to start machining

Order steel:

5days steel will arrive us for machining

Rough machining

Raw steel flying knife processing to machine

Heat treatment

After rough machining

Hardness:

48-54HRC

Lifters:

Nitride with surface hardness 48HRC

Fine machine:

High speed CNC, three or five axis CNC

Fine machining

High speed engraving machining

Fine machine:

Fine EDM, wire cutting

Assembly:

3days to assembly for test

Polish:

Manual high quality process

Surface finish:

Mirror polishing to get good appearance

Other:

EDM or wire cutting texture

Ejection:

Hardness HRC55-60, run automatic

Suitable for:

Injection machine

Test:

50day after confirmation mould design

Balance:

50% balance by TT

Delivery

1-2weeks after balance and samples confirmation

Transport

By sea from Ningbo Port China

2. Why Us To Be Your Supplier for your automotive mould?

  1. We make more than 400 automotive moulds each year and most for foreign customers. So we have most experience and can make good quality control.
  2. We have special professional designers and mold makers for mold after making so many automotive molds.
  3. Many customers cooperate with us more than 10 years, and their loyalty shows our honest on mold.
  4. Quality is the life of our company. We focus on quality and time control. Every mould machining process will be weekly informed.
  5. Trust was built on you know better of us. Believe yourself and choose us won’t let you down. Let’s try and know you better. You need good automotive mould supplier, and what we need is a chance to show you who we are and what we can do.
automotive mold,automotive mould maker of china

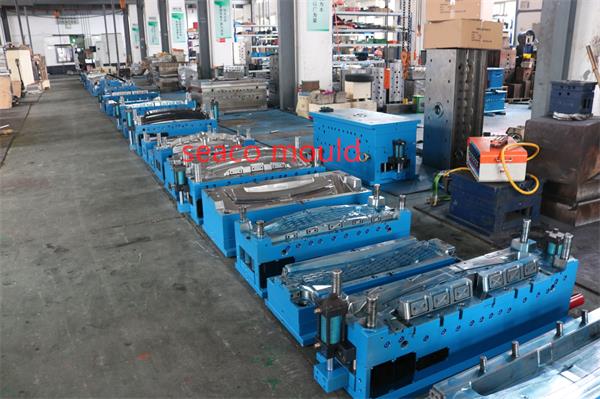

3. Experice of the automotive mold manufacturing
