Car light mold appearance requirements are extremely high

1. Introduction

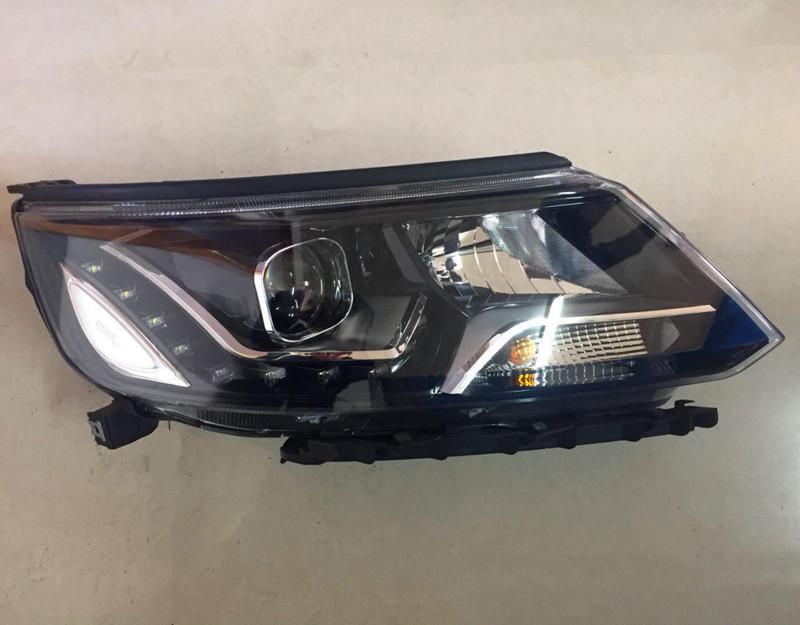

to automotive headlight products It can be said that the parts required for the appearance of the car are the headlights, so the mold design and manufacturing requirements are extremely high. The main parts that make up the front and rear lights of a car are: left and right lenses, left and right decorative frames, left and right lamp housings, left and right reflectors, and so on.

2. Appearance requirements for automotive headlight products

(1) The lens product is a transparent piece with a pattern on the inner side and high appearance requirements.
(2) The appearance of decorative frame products is aluminum-plated, and some areas need to be frosted.
(3) The lamp housingis an internal functional part, and the assembly requirements of the lamp cap hole and the rear cover hole are high.
(4) The mirror products are electroplated parts, which have strict light distribution requirements, and the surface is plated with aluminum.

3. Display of main molds for automotive headlights

• (1) lens
• (2) decorative frame
• (3) lamp housing
• (4) reflector

4. Introduction to the mold structure of automotive headlight mold

• (1) lens
• (2) decorative frame
• (3) lamp Shell
• (4) Mirror
