Manufacturing method of automobile thin-wall door panel injection mold

2019-11-27
The invention relates to a door panel mold, in particular to an automobile door plate mold, and belongs to the technical field of automobile production and application.

Background technique:

During the production of automobile door panels, injection molding is often used because of its irregular shape. Injection molding is a method of industrial product production and molding. It uses thermoplastic or thermosetting materials to make plastic products of various shapes using plastic molding dies. The main molding equipment, injection molding is achieved through injection molding machines and molds.

The existing door panel mold still has certain defects in use. Although the existing door panel mold can shape the car door panel, it is easy to generate more smoke during the injection process, which is affected by the employees inhaling the smoke. The body is healthy, and the exhaust into the air also affects the environment. The welded molding tank is not convenient to take out the door panel formed inside, and the movable molding tank is not convenient to cool, so it brings a lot of inconvenience to production.

Technical realization elements:

The purpose of the present invention is to provide an automobile door panel mold in order to solve the above problems, which has the advantages of being easy to take out after injection molding and utilizing exhaust gas.

The utility model achieves the above object through the following technical solutions. An automobile door panel mold includes a bottom plate and a forming groove. A protective cover is provided on the top of the bottom plate, a gate is provided on the top of the protective cover, and two sides of the protective cover are provided. Smoking pipes are provided, drawer plates are provided inside the protective cover, slide rails are provided at both ends of the bottom of the drawer plate, a cooling bucket is provided below the drawer plate, and a slope bottom is provided inside the cooling bucket. The top of the drawer plate is provided with the forming groove, the bottom of the bottom plate is provided with a base, one end of the base is provided with a movable cover, the inside of the base is provided with a reaction barrel, and the inside of the reaction barrel is provided with a water layer, and the water layer A push plate is set at the bottom of the push plate, a smoke layer is set below the push plate, an activated carbon layer is set below the smoke layer, a water pipe is set on the top of the water layer, and a water pipe is installed on the top of the water pipe.
  • Preferably, in order that the water can enter the water inlet pipe through the water outlet pipe and finally enter the cooling bucket, the bottom of the slope can return water back, the water outlet pipe is connected to the cooling bucket through the water inlet pipe, and the water inlet pipe is installed on the inclined slope Bottom of the bottom.
  • Preferably, in order to make the drawer plate easy to pull out the protective cover, and the two lengths are equal so that the gap between the drawer plate and the protective cover is small, the drawer plate is movably connected through the slide rail and the protective cover, and the drawer The length between the plate and the protective cover is equal.
  • Preferably, in order to make the inside of the flue gas layer enter a large amount of flue gas, the pressure of the reaction barrel rises, so that the push plate moves upward to squeeze water into the outlet pipe, and the protective cover is connected to the flue gas layer through the smoking pipe, and The push plate and the smoke layer communicate with each other.
  • Preferably, in order that the automobile door panel that is initially shaped in the molding tank can be quickly cooled, and the gate can accurately inject the injection molding material into the molding tank, the cooling tank is set at the bottom of the molding tank, and the top of the molding tank and the gate Set symmetrically between them.
  • Preferably, in order to facilitate the opening of the base of the movable cover and facilitate the maintenance of the internal reaction barrel, the movable cover and the base are movably connected, and the reaction barrel is installed on a side close to the movable cover.

Compared with the prior art, the beneficial effects of the present utility model are:

  1.  By setting a drawer plate at the bottom of the forming slot, the drawer plate can move inside the protective cover, and the gate opened at the top of the protective cover can be used to pour plastic material. The protective cover can effectively protect the operator, and the drawer plate can pass through the bottom two The slide rail at the end is movably connected to the bottom of the protective cover, so that the user can perform safe injection molding and take out the molded car door panel, and the exhaust fumes generated during the injection molding of the car door panel inside the protective cover are all sucked into the bottom by the smoking pipe. In the base to prevent people from inhaling smoke.
  2. The utility model has a simple structure and a compact connection. By setting a reaction barrel inside the base, the reaction barrel is divided into three layers, the top water layer, the middle flue gas layer, the bottom activated carbon layer, and the flue gas collected in the flue gas layer to increase the reaction. The air pressure in the bucket causes the push plate to move upward to squeeze the water in the water layer into the outlet pipe, and then enters the cooling bucket at the bottom of the drawer plate to quickly cool the automobile door panel that is initially shaped in the forming tank, so that the door panel has high forming efficiency and smoke. After being gradually adsorbed by activated carbon, the air pressure in the reaction barrel dropped, the push plate moved down, and water entered the water layer again.

BRIEF DESCRIPTION OF THE DRAWINGS

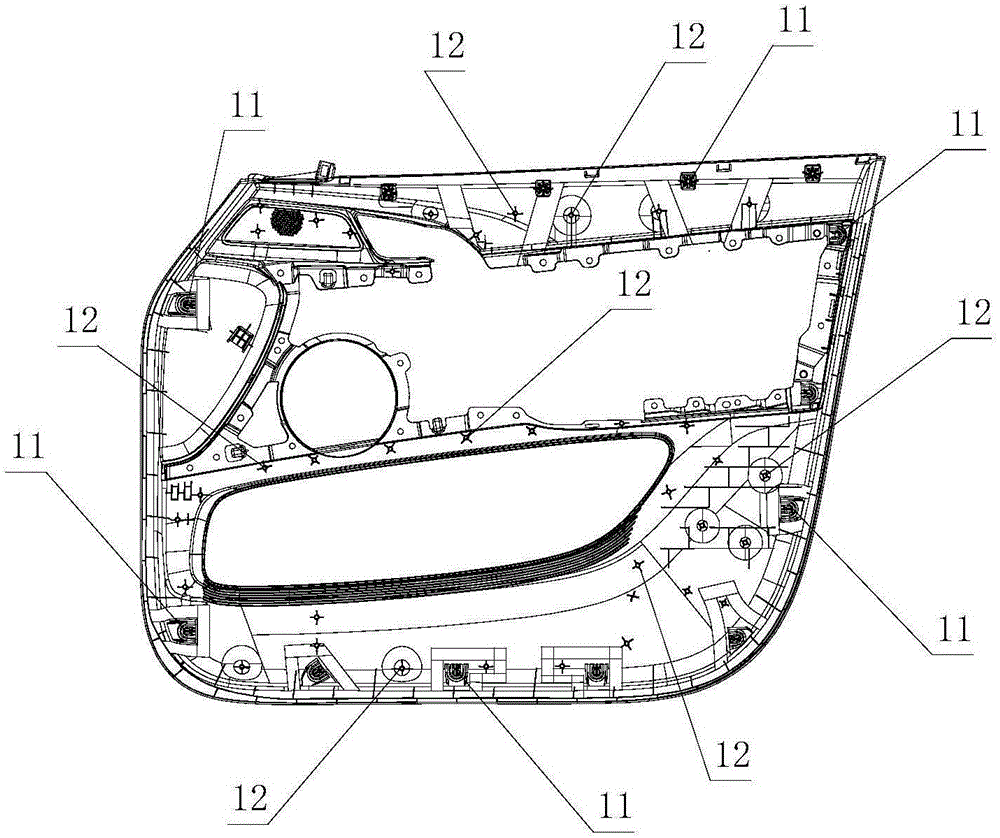

Manufacturing method of automobile thin-wall door panel injection mold
  1. Figure 1 is a schematic diagram of the overall structure of the utility model.
  2. FIG. 2 is a schematic diagram of the internal structure of the base of the present invention.
  3. FIG. 3 is a schematic structural diagram of a forming tank of the present invention.
  4. FIG. 4 is a schematic diagram of a slide rail structure of the present invention.
  5. FIG. 5 is a schematic diagram of the internal structure of the cooling bucket of the present invention.

In the picture: 1. bottom plate; 2. protective cover; 3. gate; 4. smoking pipe; 5. drawer plate; 6. water inlet pipe; 7. outlet pipe; 8. base; 9. movable cover; 10. reaction barrel 11, water layer; 12, push plate; 13, flue gas layer; 14, activated carbon layer; 15, forming tank; 16, cooling bucket; 17, slide rail; 18, the bottom of the slope.

Detailed ways

In the following, the technical solutions in the embodiments of the present invention will be clearly and completely described with reference to the drawings in the embodiments of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, not all of the implementation example. Based on the embodiments of the present invention, all other embodiments obtained by a person having ordinary skill in the art without making creative work belong to the protection scope of the present invention.

Example 1

Please refer to Fig. 1-5, a mold for an automobile door panel includes a bottom plate 1 and a forming groove 15, a protective cover 2 is provided on the top of the bottom plate 1, and a gate 3 is provided on the top of the protective cover 2. The protective cover 2 can prevent When high-temperature fluid splashes out of the molding tank 15, the user is burned. Smoking pipes 4 are provided on both sides of the protective cover 2, drawer plates 5 are provided inside the protective cover 2, slide rails 17 are provided at both ends of the bottom of the drawer plate 5, and drawers are provided. A cooling bucket 16 is provided below the plate 5, a slope bottom 18 is provided inside the cooling bucket 16, a molding groove 15 is provided on the top of the drawer plate 5, a base 8 is provided on the bottom of the bottom plate 1, and a movable cover 9 is provided on one end of the base 8. The movable cover 9 is opened It can be seen that the reaction barrel 10 is inside, the reaction barrel 10 is set inside the base 8, the water layer 11 is set inside the reaction barrel 10, a push plate 12 is set at the bottom of the water layer 11, and a smoke layer 13 is set below the push plate 12, An activated carbon layer 14 is provided below the gas layer 13. A water outlet pipe 7 is provided on the top of the water layer 11. A water inlet pipe 6 is installed on the top of the water outlet pipe 7. The water outlet pipe 7 is connected to the water layer 11 and the water inlet pipe 6 is connected to the cooling bucket 16.

Example 2

In addition, referring to Figs. 1-5, the difference from the first embodiment described above is that the water outlet pipe 7 is connected to the cooling bucket 16 through the water inlet pipe 6, and the water inlet pipe 6 is installed at the bottom end of the inclined bottom 18 of the slope. The water outlet pipe 7 enters the water inlet pipe 6 and finally enters the cooling bucket 16. The slope bottom 18 can make water return again. The drawer plate 5 is movably connected through the slide rail 17 and the protective cover 2, and the length between the drawer plate 5 and the protective cover 2 Equal, in order to make the drawer plate 5 easy to pull out the protective cover 2, and the length of the two is equal so that the gap between the drawer plate 5 and the protective cover 2 is small, the protective cover 2 is connected to the smoke layer 13 through the smoking pipe 4, and the push plate is pushed 12 and the flue gas layer 13 communicate with each other. In order to make a large amount of smoke enter the flue gas layer 13, the pressure of the reaction barrel 10 rises, so that the push plate 12 moves upward to squeeze water into the water pipe 7, and the bottom of the molding tank 15 A cooling bucket 16 is provided, and the top of the molding tank 15 and the gate 3 are symmetrically arranged. In order to enable the automobile door panel initially shaped in the molding tank 15 to be rapidly cooled, and the gate 3 can accurately insert the injection molding material into the molding tank 15 Between the movable cover 9 and the base 8 It is movably connected, and the reaction barrel 10 is installed on the side close to the movable cover 9. In order to make the movable cover 9 open the base 8 conveniently, the internal reaction barrel 10 is convenient for maintenance.

When the utility model is in use, first, the molten injection molding material is poured into the protective cover 2 along the gate 3 on the top of the protective cover 2, and the injection molding material enters the molding groove 15 for slow molding. A large amount of smoke is generated inside, and the inhalation of smoke into the body will affect health. The smoking pipe 4 sucks the smoke into the smoke layer 13 inside the reaction barrel 10, and the inside of the reaction barrel 10 is caused by a large amount of smoke in the smoke layer 13 The air pressure rises, and the rising air pressure pushes the push plate 12 to move upwards, squeezes the water in the water layer 11 into the water outlet pipe 7, and then enters the cooling bucket 16 along the water inlet pipe 6, and the cooling bucket 16 fits at the bottom of the molding tank 15, The injection molding material in the tank 15 is rapidly cooled. After a period of time, the activated carbon layer absorbs the flue gas, the internal pressure of the reaction barrel 10 is restored, and the bottom 18 of the slope returns the water to the water layer, so that the device can be repeatedly operated. Finally, the drawer plate 5 is pulled out It is sufficient to take out the automobile door panel in the molding groove 15.

It is obvious to a person skilled in the art that the present invention is not limited to the details of the above-mentioned exemplary embodiments, and the present invention can be realized in other specific forms without departing from the spirit or basic features of the present invention. Therefore, the embodiments are to be regarded as exemplary and non-limiting in every respect. The scope of the present invention is defined by the appended claims rather than the above description, and is therefore intended to fall within the scope of the rights. All changes within the meaning and scope of the required equivalent requirements are encompassed within the present utility model. Any reference signs in the claims should not be construed as limiting the claims involved.

In addition, it should be understood that although this specification is described in terms of embodiments, not every embodiment includes only an independent technical solution. This description of the specification is for clarity only, and those skilled in the art should take the specification as a whole. The technical solutions in the embodiments can also be appropriately combined to form other implementations that can be understood by those skilled in the art.
